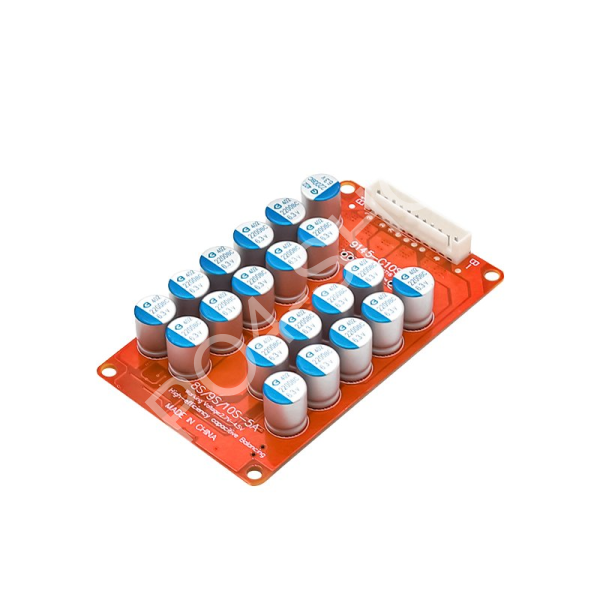

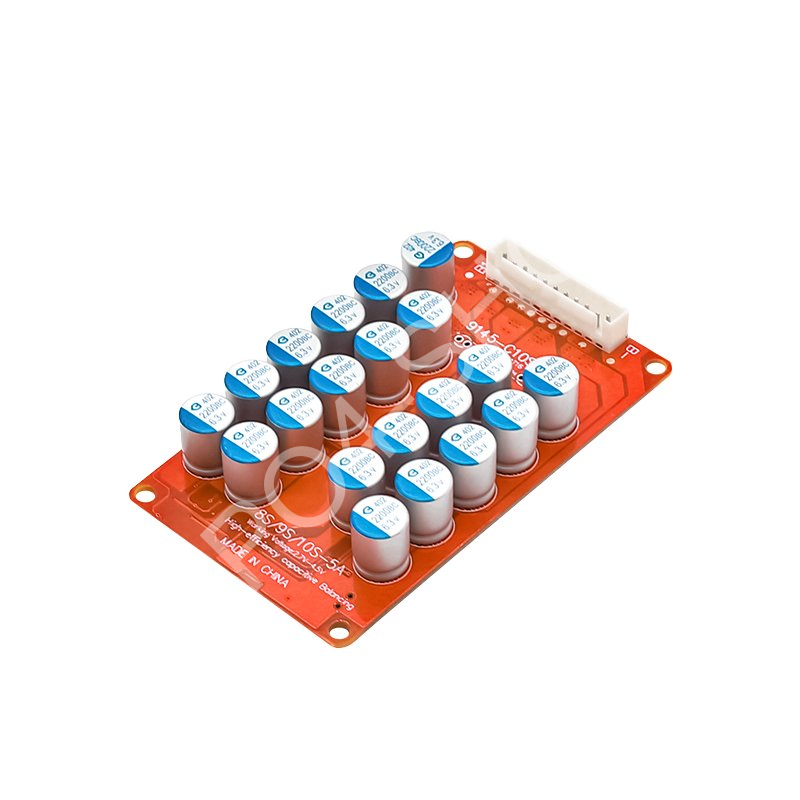

8S balancer 5A
active balancer for 6 to 8 NMC or LIFEPO4 cells
possibility of turning on/off balancing with a connected switch
8S 5A
complete with cables, the board is equipped with self-adhesive foil on the bottom
disconnect the connector from the balancer
connect the B- balancer (black wire) to the minus pole of the battery
connect the individual wires to the batteries B1-B8
measure the voltage on the individual pins of the connector. Measure against the minus (black wire)
you should measure for example: 3.2V,6.4V,9.6V etc....this will verify the correctness of the connection
connect the connector to the balancer board
Parameters
počet článků v serii: 8 ks
klidová spotřeba: 1 mA
pracovní spotřeba: 12 mA
počet článků v serii: 8 ks
klidová spotřeba: 1 mA
pracovní spotřeba: 12 mA
 |
návod k zapojení | 17.52 MB | Download file |
